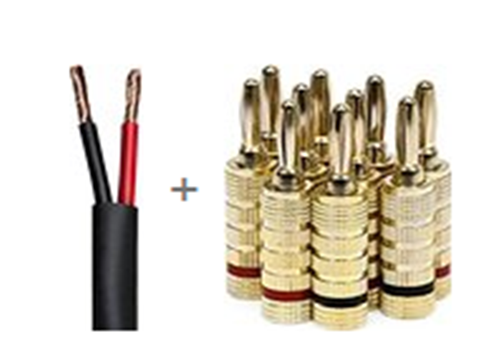

12AWG 2 Conductor CMP Rated Speaker Wire 50ft PVC Monoprice Nimbus Series
Specification:
1. The Plenum (CMP) rating indicates that the cable complies with fire safety and insurance requirements, making it safe for use inside the walls of residential and enterprise class buildings.
2. This speaker wire features conductors made of high purity oxygen-free bare copper.
3. Monoprice Plenum Speaker Wire uses a high quality material that is softer and more flexible than on traditional plenum rated jackets.
4. Easily identifiable Red and Black conductors.
5. All Monoprice cables come with a Lifetime Warranty. You can rest assured that Monoprice stands behind its cables and its customers
Description:
| Model | Conductor | Insulator |
| AWG | No. of Conductor | Specification | Nom. Thickness | Diameter |
| SPT-1 | 20 | 2 | 26/0.16 | 0.76 | 2.5×5.0 |
| 3 | 26/0.16 | 0.76 | 2.5×7.4 |
| 18 | 2 | 41/0.16 | 0.76 | 2.7×5.4 |
| 3 | 41/0.16 | 0.76 | 2.7×8.0 |
| SPT-2 | 18 | 2 | 41/0.16 | 1.14 | 3.5×7.0 |
| 3 | 41/0.16 | 1.14 | 3.5×8.7 |
| 16 | 2 | 65/0.16 | 1.14 | 3.7×7.4 |
| 3 | 65/0.16 | 1.14 | 3.7×9.6 |
| SPT-3 | 18 | 2 | 41/0.16 | 1.52 | 4.5×9.0 |
| 3 | 41/0.16 | 1.52 | 4.4×10.3 |
| 16 | 2 | 65/0.16 | 1.52 | 3.7×7.4 |
| 3 | 65/0.16 | 1.52 | 4.8×11.2 |
| 14 | 2 | 41/0.254 | 2.03 | 6.3×12.6 |
| 3 | 41/0.254 | 2.03 | 6.3×13.5 |
| 12 | 2 | 65/0.254 | 2.41 | 7.6×15.2 |
| 3 | 65/0.254 | 2.41 | 7.6×15.8 |
| 10 | 2 | 65/0.32 | 2.79 | 9.1×18.2 |
| 3 | 65/0.32 | 2.79 | 9.1×18.8 |
| Nominal cross-section(mm2) | conductor(No./mm) | O.D(mm) | O.D of cable (mm) |
| 2x0.5 | 28/0.15 | 0.8 | 3.0*6.0 |
| 2x0.75 | 42/0.15 | 0.8 | 3.2*6.4 |
| 2x1 | 32/0.20 | 0.8 | 3.3*6.6 |
| 2x1.5 | 48/0.20 | 0.9 | 3.8*7.6 |
| 2x2.5 | 49/0.25 | 0.9 | 3.9*7.8 |
| 2x4 | 56/0.30 | 1 | 4.6*9.2 |
Applications:
The speaker ON cable connectors are the industry standard connectors for amplifier / loudspeaker
connections.
Competitive Advantage:
1. Professional manufacturer, 100% tested, free samples are available.
2. OEM service with 10-years’experience, manufacturing according to your requests.
3. Physical Stock for fast delivery
4. Customers solutions in days, not weeks.
5. Warmly services with careful attentions.
6. Specific inquiry will be responded within 24 hours.
7. Delivery Time: 3-5 days for samples; 5-25 days for batch goods.
Shipping Details:
1. By air
Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will be charged if your destination is remote area.
2. By sea
Shipments will be operated under FOB conditions.
Product Tags:
|
|
12AWG 2 Conductor CMP Rated Speaker Wire 50ft PVC Monoprice Nimbus Series Images
|
